gmp获汉堡奥林巴斯办公科研园区设计委托

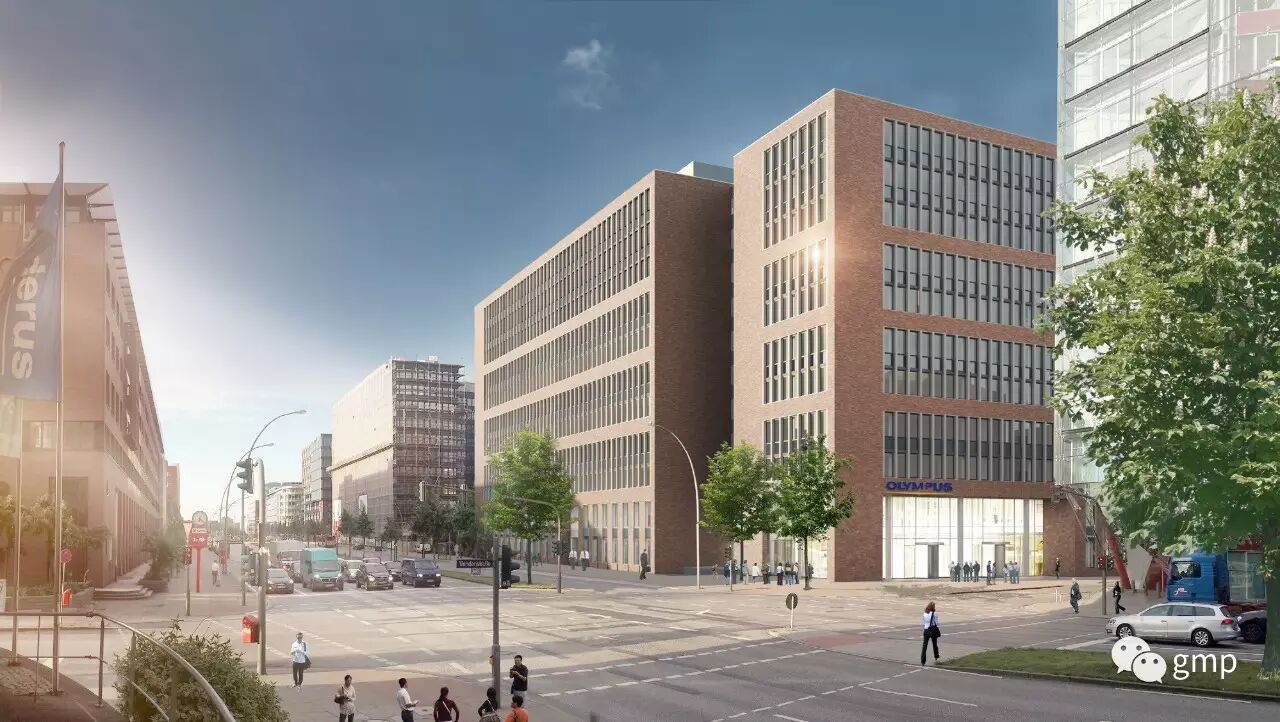

海德坎普鲁道北侧视角©gmp

日本奥林巴斯集团计划在汉堡哈玛布鲁克区兴建集团欧洲、近东和非洲地区业务（EMEA）办公楼。这座位于汉堡南区的新办公楼内将设有精密医疗仪器部门，gmp建筑师事务所中标并获得设计委托。新建奥林巴斯办公科研园区将取代原址之上的一栋在功能、能耗指标和建筑形式上均无法满足使用需求的小型办公楼。

The Japanese corporation Olympus is planning a corporate center in the Hamburg district of Hammerbrook for the economic zone in Europe, the Middle East and Africa (EMEA). gmp was successful in winning the bidding process for the design of the new office building with medical engineering faculty in the City Süd neighborhood, and was commissioned with the project. The new Olympus Campus development replaces a smaller, existing building, which no longer meets current standards in terms of function, energy efficiency, and architecture.

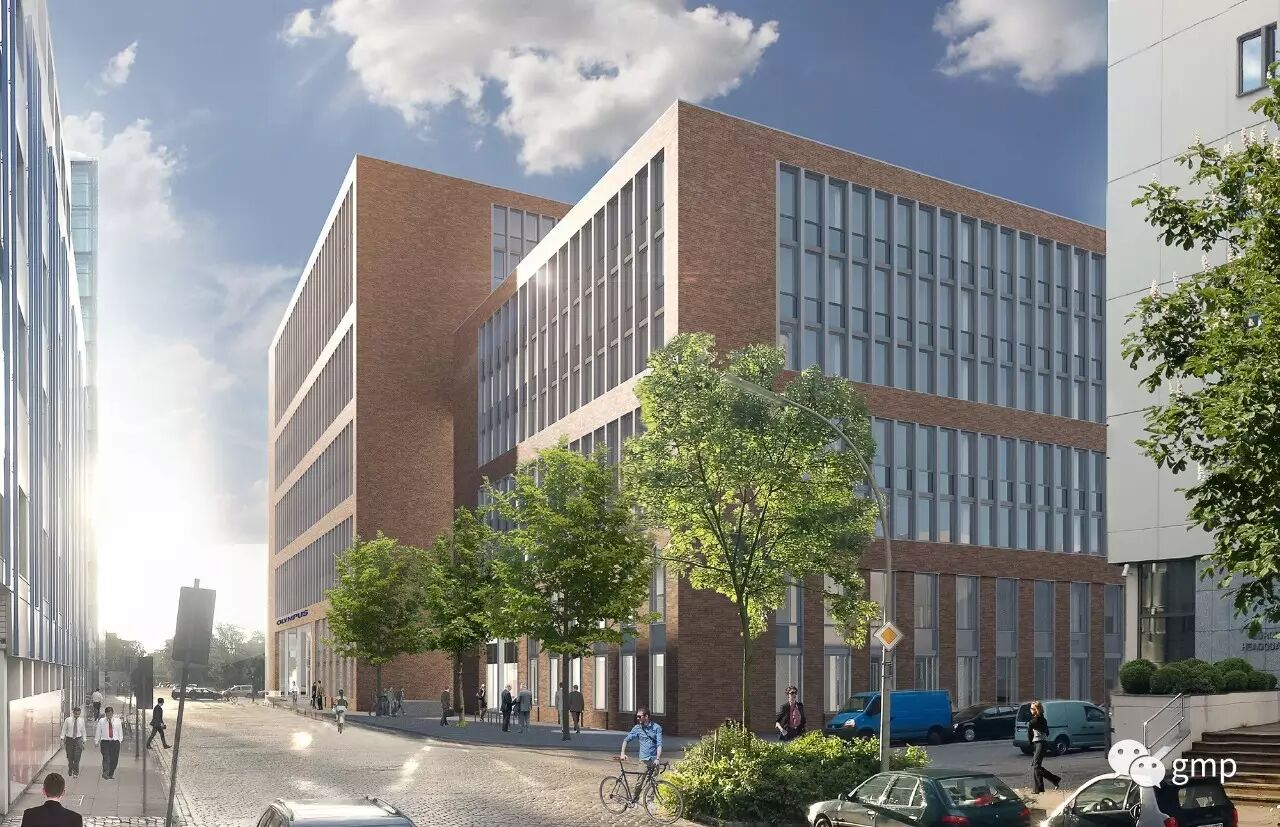

海德坎普鲁道南侧视角©gmp

设计方案为三栋建筑体：，另外两座L型建筑体将其围合。三栋建筑体略微交错，定义出数个小型前广场，强调出办公园区的几个独立入口。建筑群气势夺人的主入口位于海德坎普鲁道转角处重要位置。一座巨大的前厅将玻璃中庭和奥林巴斯科研园区连为一体。一座室外阶梯将人流引导至培训和会议楼层之上。建筑群内设有7个交通核心筒，可以实现办公空间的高度灵活分隔规划，14.5米的空间进深可作为大型办公空间使用，也可以规划为两排或三排办公组团，实现空间的多元化利用。

The concept includes three distinct building volumes; the main building with eleven stories occupies the spine position, with two L-shaped tracts connecting to it. By slightly offsetting these elements from each other, small forecourts are created, which mark the separate entrances. The prestigious main entrance is positioned at the building corner first encountered when approaching from Heidenkampsweg. The roofed-over atrium of the Olympus Campus is accessed via the large foyer. An open staircase leads to the level of the training and conference center. The office units are accessed via a total of seven vertical circulation cores and, with their layout, provide a high degree of flexibility for various use scenarios; designed for a multi-space concept, with a depth of 14.5 meters the building can be used for open plan offices, as well as for layouts with one or two inner access corridors.

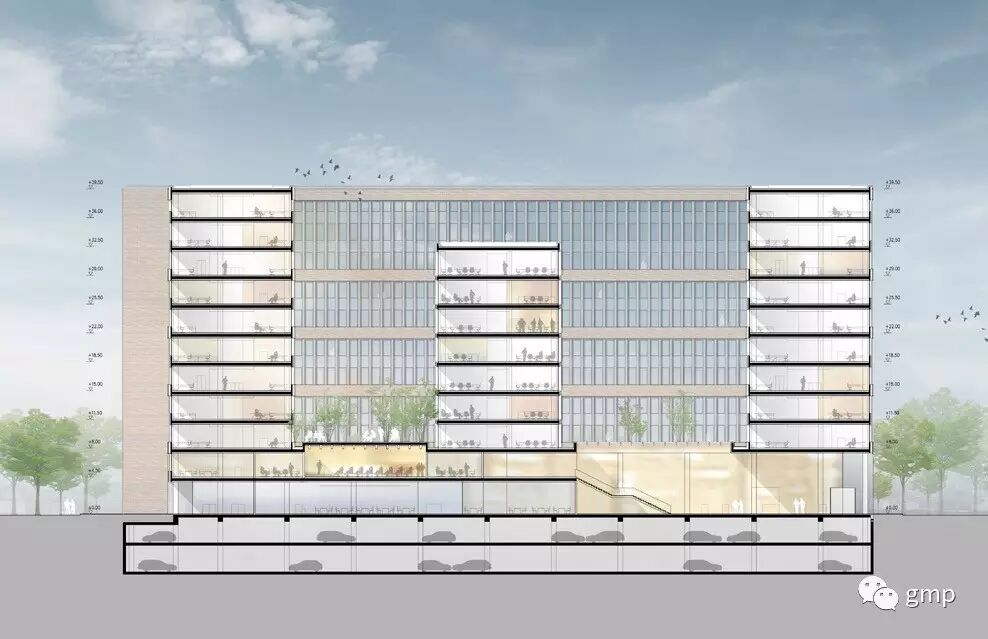

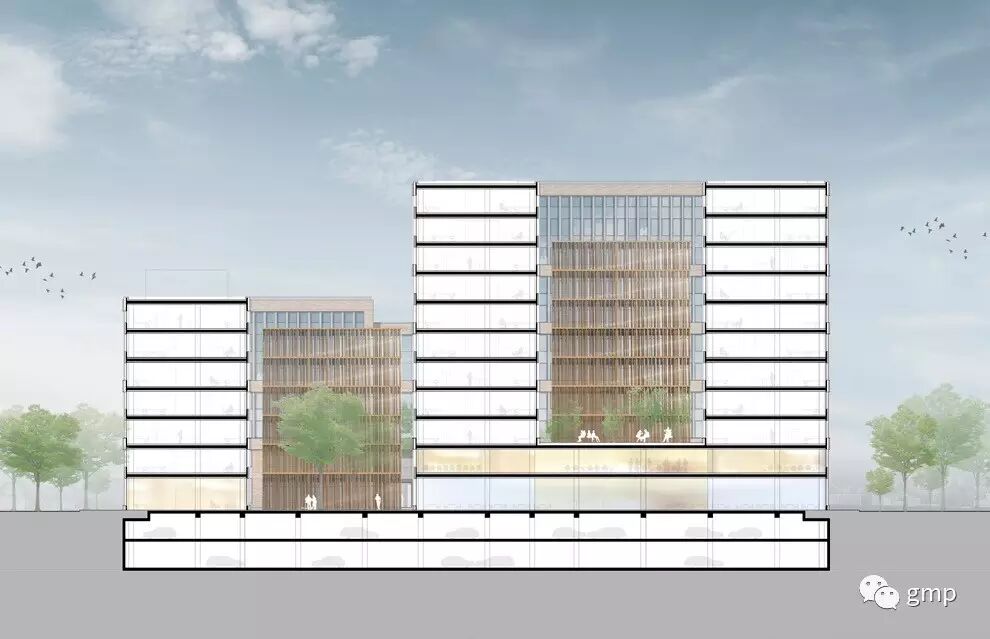

A-A剖面|B-B剖面©gmp

建筑幕墙选择了具有地域特色的砖石。基座层之上砖石立面以每两层或三层为单位刻画出整体的秩序结构。楼层单位之间的砖石分割肌理赋予三栋建筑体和谐统一的整体形象。建筑幕墙拥有高效节能的品质，窗扇可以开启进行自然通风，同时为室内办公空间提供良好的采光，彰显设计的审慎和理性。建筑可持续性设计参照德国DGNB能耗规范制定。

The facade features clinker bricks that are typical of the location. Above the plinth area, the design visually groups two or three stories together. Glazed joints separate the three main building volumes, thereby providing structure to the overall appearance and creating a sense of scale of the different elements. The functionality of the design is enhanced by a highly efficient building envelope, natural window ventilation, and excellent daylight at all workplaces. The sustainability concept takes the DGNB requirements into account.

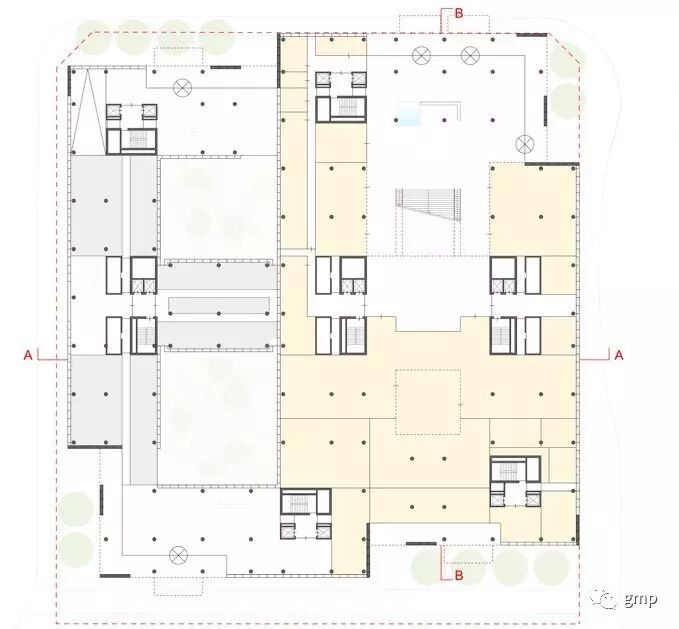

一层平面©gmp

汉堡哈玛布鲁克区1980年成为汉堡行政区“南区”，定位为临近城市中心的办公商务区，对其持续开发可以减缓城市中心日益增长的用地压力。时至今日南区正在经历从以单一服务业为主到功能多样化高密度社区的变革。在汉堡南区城市化进程中，新建奥林巴斯办公园区将取代原有一栋小型办公楼，整合异质化的街区现状。

In the 1980s, the „City Süd“ commercial estate was developed in the Hammerbrook district in order to provide alternative office accommodation close to Hamburg’s inner city. There is currently a change in the approach to the design of service facilities, in that multi-functional quarters with high density are favored over monofunctional developments. The new construction for Olympus continues this urbanization process and replaces a smaller existing building. The new development will occupy the entire site, which up to now had various ad hoc buildings.

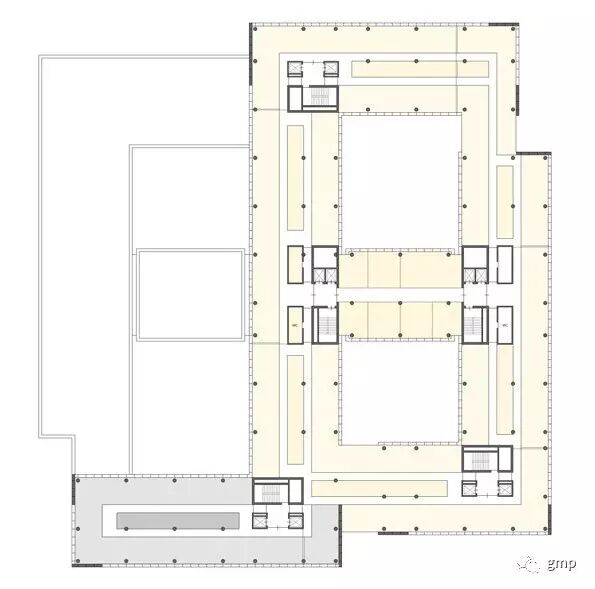

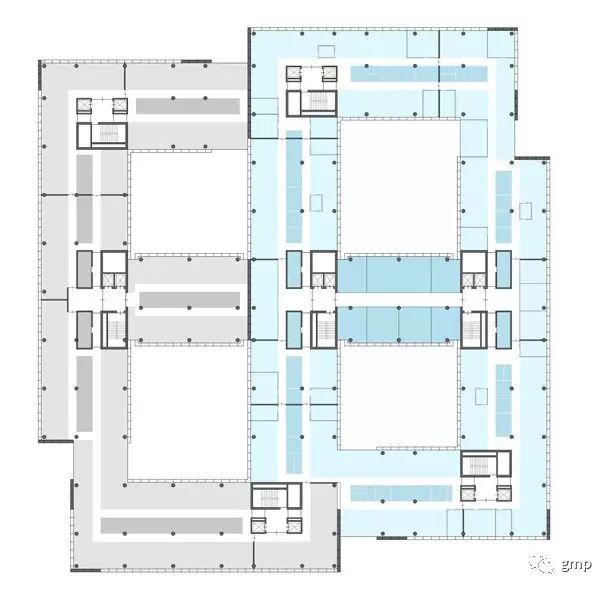

四层平面|八层平面©gmp

设计：曼哈德·冯·格康和尼古劳斯·格茨以及福克玛·西弗斯
项目负责人：Jan Stolte
竞赛阶段设计团队：Aleksandra Blazhevska, Mathilde Claus, Anna Falkenbach, Dorle Frobese, Frederik Heisel, Julian Lahme, Karsten Schillings, Tom Schülke, Michèle Watenphul, Urs Wedekind
实施阶段设计团队：Mine Böker (BIM协调员), Mathilde Claus, Frederik Heisel, Martina Klostermann, Fenja Lüdecke, Amra Sternberg
总体设计协调： Liselotte Knall
业主： Olympus Europa Properties GmbH & Co. KG
建筑面积：总面积 78200 m²,地上面积 54600 m² , 地下面积23600 m²

Design Meinhard von Gerkan and Nikolaus Goetze with Volkmar Sievers
Project manager Jan Stolte
Competition design team Aleksandra Blazhevska, Mathilde Claus, Anna Falkenbach, Dorle Frobese, Frederik Heisel, Julian Lahme, Karsten Schillings, Tom Schülke, Michèle Watenphul, Urs Wedekind
Detailed design team Mine Böker (BIM coordination), Mathilde Claus, Frederik Heisel, Martina Klostermann, Fenja Lüdecke, Amra Sternberg
General design coordinator Liselotte Knall
Client Olympus Europa Properties GmbH & Co. KG
GFA Total 78,200 m², above ground 54,600 m², below ground 23,600 m²
